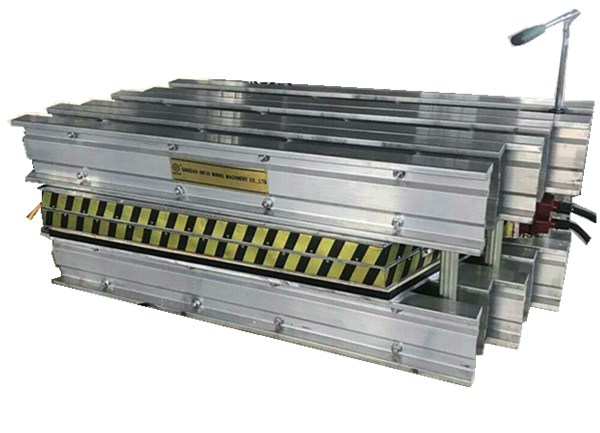

A-SVP Sectional-conveyor belt vulcaniser
Product Name:
A-SVP Sectional-conveyor belt vulcaniser
Model No. :
A-SVP
:
:

 he A-SVP sectional conveyor belt press has uniform pressure bag and aluminum/steel bolt and high grade aluminum platens and beams with restraining system set as optional. Such belt splicing system designed to be portable and easy to set-up and remove from the site. We can manufacture to all sizes and pressure up to 2.0 Mpa required for different fabric belts and steel-cord belts.

TECHNICAL PARAMETERS

·         Waterbag (also can use air pressure) Press for 100PSI200PSI etc. surface pressure for textile and steel cord belts, Up to 1.8Mpa.

·         100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting

·         200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting

·         Max Belt width: from 650mm to 3000mm

·         Different heating platen size and combination.

·         Degree of the heating platen: 22 degree bias angle , 20 degree, rectangle and other degree is optional.

·         Power Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V

·         Vulcanizing temperature:145 (adjustable 0~200)

·         Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 50 min, accords to different conditions, actually, normal conditions, is around 25~30 mins.

·         Improved cooling system, when use pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)

*********************************************************

When order, pls supply below information, our engineer will make a solution for you, or pls choose one model from bottom traditional sizes table

1.        Max belt width

2.        Heating platen length (or pls supply belt manufacturer’s recommended splice length)

3.        What kind of belt, light duty belts or heavy duty belts

4.        Working Voltage

5.        Pressure requirements (as our experience, normal is 0.8Mpa, for EP belts is 1.2Mpa, for steelcord belts is 1.4Mpa)

6.        Degree of heating platen (standard will be 22 degree)
