Product Name:

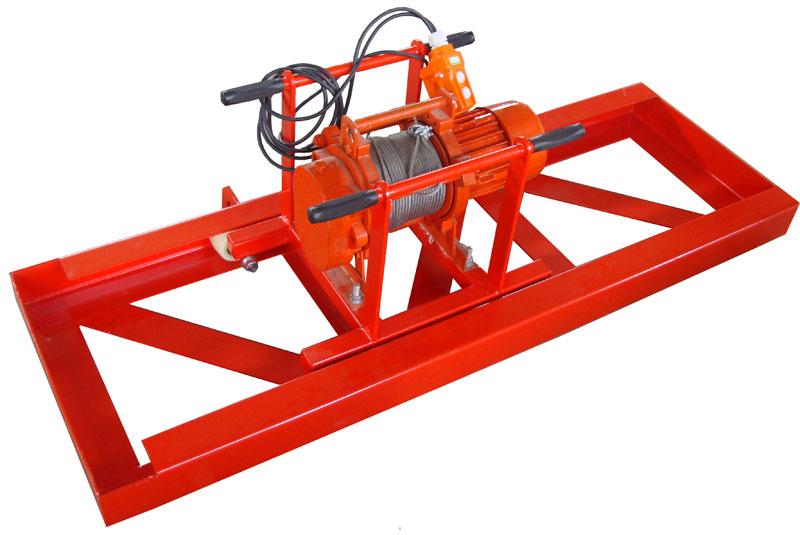

fabric conveyor belt stripper
Model No. :
DB-F
 |
1. INTRODUCTION
DB-F fabric conveyor belt stripper can be used for the separation of different conveyor belts with various bonding strength. When the site is vulcanized, the workers are stripping time-consuming and laborious, affecting the efficiency of the conveyor belt splicing. So we designed and manufactured can be multi-functional stripping a variety of conveyor belt stripping machine, thereby reducing the glue belt mouth time, so that the conveyor belt system in the shortest possible time to start running.
2. DB-F CONVEYOR BELT STRIPPER TECHNICAL DATA
VOLTAGE POWER BELT GRIPPING CLAMP TRACTION SLIDEWAY
380V 0.75KW 100mm-200mm 7m/min 1600mm
3. Model features:
DB-F stripper has light weight; the reduction ratio is 1:29, durable/continuous work to reduce the labor intensity of the workers. (this product is mainly applied to ply belt, steel cord fabrics).
4. USING MANUAL
1. Supply the electric power,
2. then the gripping clamp one side is with the conveyor belt which is prepared.
3. The last step the worker pushes the button and it works
5. CAUTION
1. Dry ventilated, damp proof.
2. Keeping away from the machine when it works.
3. Keeping checking the parts of the machine when it's used for a long time.
